Lubricate Driveshaft

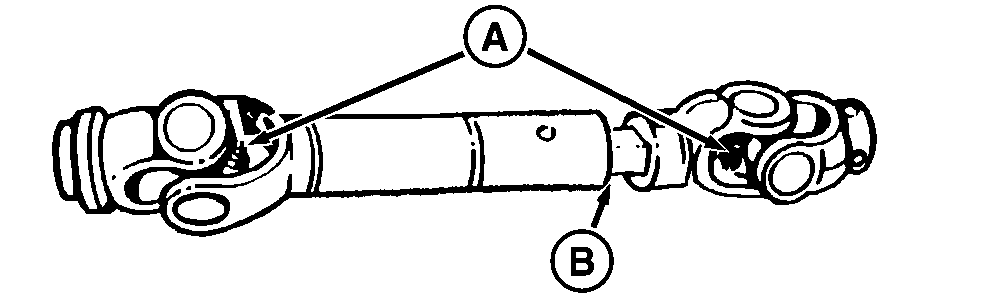

  1. MXT015392
    MXT015392-UN-29JUL15

    Lubricate each PTO shaft U-joint fitting (A) with recommended grease.


  2. Fully extend driveshaft.

  3. Lubricate exposed section of shaft (B) with recommended grease.

  4. Extend and compress driveshaft several times to distribute grease. Separate driveshaft and reapply grease if necessary.

MX52301,0000BC8-19-20150803
