Identify Parts

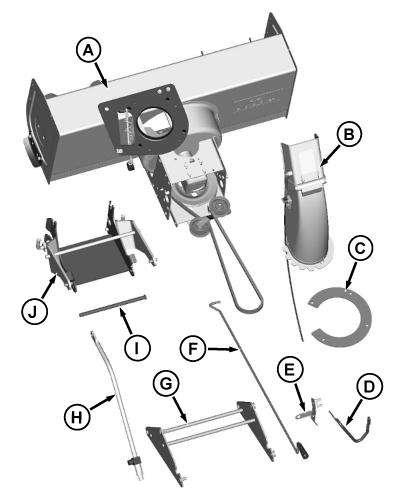

44 and 47 in. Snowblower Parts

MXT013975-UN-25JUN15

Quantity	Description
1	Snowblower Assembly (A)
1	Chute Assembly (Includes Spout and Cable) (B)
1	Bracket, Chute Retaining (C)
1	Bracket, Rotation Handle (D)
1	Bracket, Chute and Spout (E)
1	Rod, Chute Handle (Includes Handle) (F)
1	Bracket, Rear Lift (G)
2	Lift Link Assembly (H)
1	Pin, Front Draft (I)
1	Hitch, Front Attachment (J)
2	Reflective Tape (44 in. only)

44 and 47 in. Snowblower Hardware

Quantity	Description
3	Carriage Bolt, M8x20
1	Bolt, M6x16 Flange Head
4	Bolt, M6x45 Flange Head
4	Screw, M8x20 Self-Tapping
1	Screw, M5 Pan Head
1	Nut, M5
5	Nut, M6
2	Nut, M8
1	Washer, M10x340Dx3W (Used on 44 in. Snowblower and X350R Models)
1	Lockwasher, 3/8 in.
1	Washer, M8.4
1	Washer, M10.5
1	Clamp
4	Spacer, Chute Retaining Bracket
1	Spring Locking Pin, 2.5 mm
2	Spring Locking Pin, 3.72 mm
1	Spring Locking Pin, 4.5 mm
6	Cotter Pin, Self-Locking
2	Pin, Clevis
1	Bearing, Snap-In
1	Knob
