Adjusting Lift Height

CAUTION: Avoid injury! Lift pedal is spring-assisted and can have unexpected movement. Lock lift pedal when installing or removing attachment.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Raise snowblower to maximum height.

3.
   MXT013987-UN-17JUN15

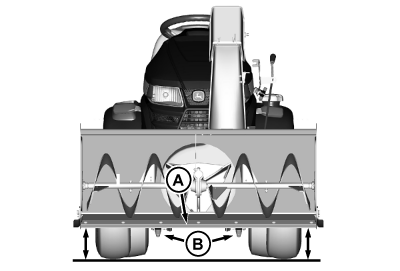

   Measure distance from scraper blade (A) to ground. It should be roughly 12.7 cm (5 in.) at both ends of the scraper blade.

   NOTE: If the lift height is adjusted too high, the front hitch pivot bottoms out. Also, the lift pedal lock handle does not engage (models with mechanical lift system).

   If the lift height is adjusted too low, the drive belt can be put into extreme angles during use, resulting in belt derailment. If machine is equipped with HDAP tires, the lift height is slightly less.

---




4. If needed, adjust one or both locknuts (B) to achieve a height of 12.7 cm (5 in.) when fully raised.
