Assemble Snowblower


Assemble Chute to Housing

MXT007260
MXT007260-UN-29MAY13

A - Chute Assembly

B - Spiral Rod

C - Chute Rotation Rod

D - Retaining Bracket

E - Screw, Self-Tapping, M8 x 20

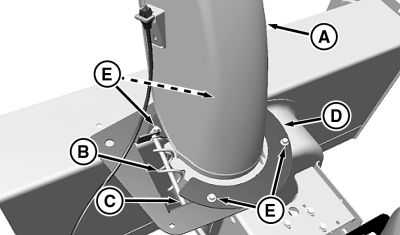

  1. Install chute assembly (A) on chute base, with teeth on chute aligned with spiral rod (B) on chute rotation rod (C). Secure chute with retaining bracket (D) and four spacers to chute base with four M8 x 20 self-tapping screws (E). Tighten hardware.

  2. MXT007261
    MXT007261-UN-29MAY13

    F - Bearing

    G - Chute and Spout Bracket

    H - Chute Handle Rod

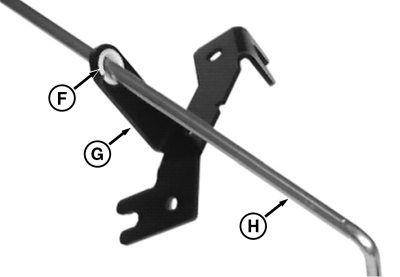

    Insert snap-in bearing (F) into chute and spout bracket (G), with wider flange of bearing on handle side of bracket. Slide chute and spout bracket onto chute and handle rod (H).



  3. MXT007262
    MXT007262-UN-29MAY13

    I - Chute Handle Rod

    J - U-Joint

    K - Flat Washer, M10.5

    L - Spring Locking Pin, M2.5

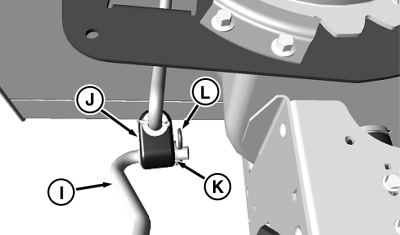

    Insert end of chute handle rod (I) into black plastic U-joint (J) at end of chute rotation rod and secure with an M10.5 flat washer (K) and M2.5 spring locking pin (L).



  4. MXT007263
    MXT007263-UN-29MAY13

    M - Spout Cable

    N - Clamp

    O - Bolt, Flange Head, M6 x 16

    P - Nut, M6

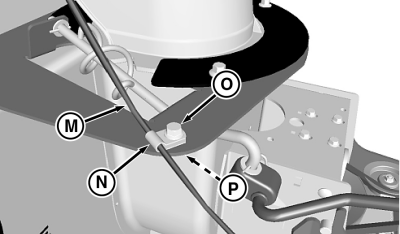

    Rotate chute to right until it stops. Secure spout cable (M) to the left rear mounting hole in the chute base, using clamp (N), M6 x 16 flange head bolt (O) and M6 nut (P).



  5. MXT007264
    MXT007264-UN-29MAY13

    Q - Nut

    R - Spout Bracket

    S - Nut

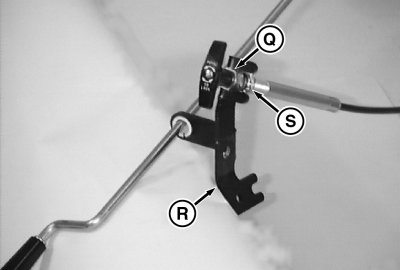

    Thread top nut (Q) on spout cable as far as possible.

    NOTE: Handle must be in vertical position when tightening to allow proper operation.



  6. Put handle end of cable into slot in chute and spout bracket (R) with lock washer and nut (S) against bottom side of bracket. Tighten nuts to secure.
