Adjusting Spout

MXT007233
MXT007233-UN-15MAY13

MXT007368
MXT007368-UN-29MAY13

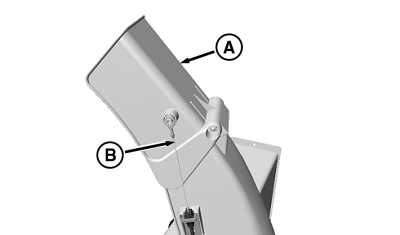

A - Spout

B - Spout Cable

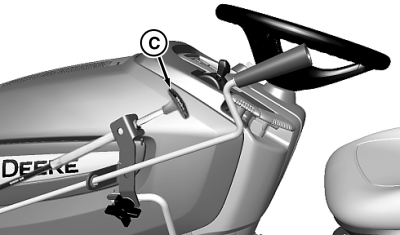

C - Spout Adjustment Handle

NOTE: Pivot tension of spout (A) is not adjustable. A return spring in the chute / spout assembly assists the spout cable (B) to adjust spout angle.

  1. Pull handle (C) to pivot spout down.

  2. Push handle (C) to pivot spout up.
