Raising and Lowering Snowblower

MXT007370-UN-29MAY13

MXT007371-UN-29MAY13

A - Lift Pedal

B - Lock Lever

C - Lift Lever

CAUTION: Avoid injury! Attachment can lower rapidly. Attachment is heavy and can crush.

Keep bystanders, especially children, away when lowering attachment.

Support raised attachment with a mechanical stop or lower completely to the ground before servicing.

Models with Mechanical Lift System

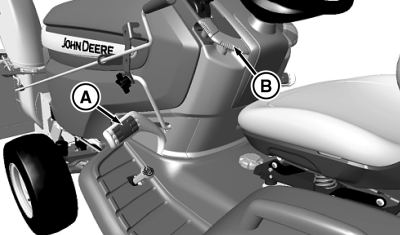

• To raise snowblower: Push lift pedal (A) forward.
• To lock snowblower in raised / transport position: Push lift pedal (A) forward fully and pull up on lift lock lever (B).
• To lower snowblower: Push lift pedal (A) partway, push down on lift lock lever (B) to unlock, then slowly release pressure on lift pedal.

Models with Hydraulic Lift System

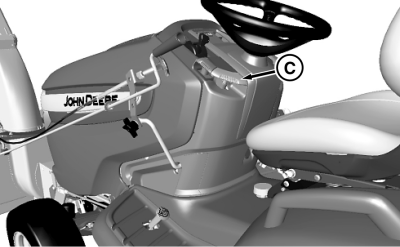

• To raise snowblower: Lift lever (C).
• To lower snowblower: Push down on lift lever (C).
