Replacing Scraper Blade

MXT007240-UN-15MAY13

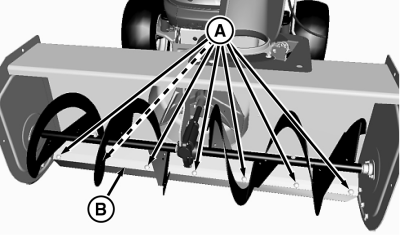

Picture Note: 44 in. snowblower shown, 47 in. snowblower is similar.

A - Replace Scraper Blade

44 in. snowblower scraper blade is not reversible. Replace 44 in. scraper blade when bent, or blade edge is rough or worn.

47 in. snowblower scraper blade is reversible. Reverse or replace scraper blade when bent, or blade edge is rough or worn.

1. Remove and retain M8 x 20 carriage bolts (A), secured at the backside with M8 locknuts.

   • 44 in. models use seven carriage bolts and nuts.
   • 47 in. models use nine carriage bolts and nuts.



2. Remove, reverse (47 in. only) or replace scraper blade (B).

3. Secure scraper blade with hardware removed earlier. Tighten hardware.
