Adjusting Lift Pedal Spring Tension

MXT015226-UN-24AUG15

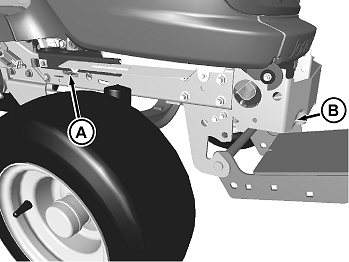

• Be sure lift spring adjustment bar is set to 44 blade setting (A). Adjust tension by rotating adjusting bolt (B) (in right front frame tunnel) clockwise to increase tension, and counterclockwise to decrease tension.
• If blade’s lift effort is too high, increase spring tension by rotating adjusting bolt (B) (in right front frame tunnel) clockwise to increase tension, and counterclockwise to decrease tension. Too much spring tension may cause blade to “float” along surface being bladed.
