Lubricating Suspension

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

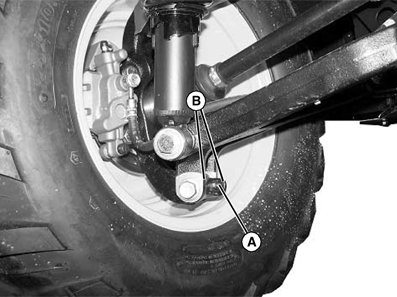

   MXAL47334-UN-16APR13

   Using a grease gun, apply grease to rear control arm through the grease fittings (A) until grease is visible at joint interface (B).

---




3. Repeat on opposite side of machine.

4. Remove exposed grease from joint.
