Replacing Headlight Bulb

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Open the hood.

  3. CAUTION: Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

    IMPORTANT: Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt will reduce bulb life. Handle bulb by the base or with a clean cloth or gloves.

    MXAL47380
    MXAL47380-UN-16APR13

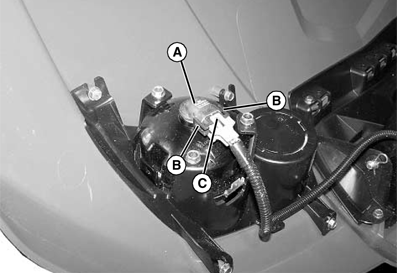

    Rotate bulb socket (A) 1/8 of a turn counterclockwise and remove socket from housing.


  4. Pull outward slightly on tabs (B), and disconnect wire connector (C) from socket. Discard the bulb/socket assembly.

  5. Connect wiring connector to new bulb/socket assembly. Install the assembly into housing and rotate 1/8 turn to lock in place.

  6. Test head lamp function.
