Opening and Closing Hood

CAUTION: Never store flammable, heavy, or loose breakable objects in the storage tray. Always latch hood before operating machine.

IMPORTANT: Do not store items that will not allow the hood to close properly. Properly secure loose or sharp items. These items may damage the storage tray or other items within the tray.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXAL47388
    MXAL47388-UN-16APR13

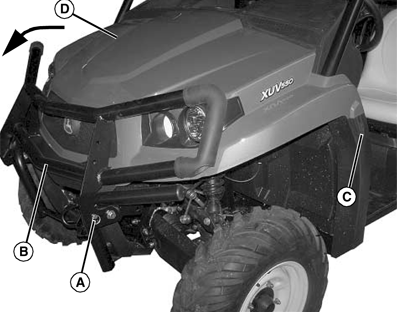

    Remove pin (A) on each side of front bumper assembly (B).


  3. Rotate top of front bumper forward.

  4. Release rubber latch (C) attached to each side of machine.

  5. Raise hood (D).

  6. Close hood. Secure with two rubber latches. Lower front bumper and secure two pins.
