Using Instrument Display Arrow Keys

1. Turn key to RUN position.

2.

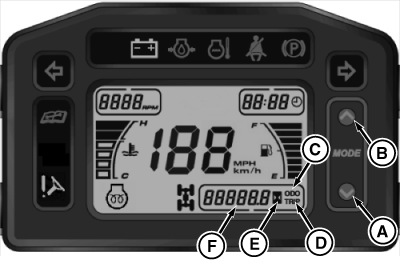

   MXT008443-UN-27AUG13

   Push down arrow (A) to adjust display brightness.

---

Odometer, Trip Meter and Hourmeter

Push up arrow (B) to toggle between odometer, trip meter, and hour meter.

• When “ODO” (C) is displayed, odometer indicator (F) displays the number of miles or km the machine has moved. (To change between miles or km displayed, see next step.)
• When “TRIP” (D) is displayed, the indicator (F) displays the number of miles or km the machine has moved for a certain trip. (Press and hold the up arrow (B) for 3 seconds to change the display back to “0” for beginning a new trip.) (To change between miles or km displayed, see next step.)
• When hourmeter (E) is illuminated, the indicator (F) displays the number of operating hours the engine has run.

Clock and Units

To set the clock or change units, the machine must be stopped. Push and hold up arrow (B) and down arrow (A) for 3 seconds to change settings.

NOTE: If you wait longer than 5 seconds before touching either the up or down arrow, the display goes back to the main screen. Press and hold up and down arrows for 3 seconds again to get back to the clock display and speed screens.

1. Push up arrow (B) to change from 12 or 24 hr. display.

2. Push down arrow (A) to set the clock. Press up arrow to increase operating hour setting. Push down arrow (A) again to display minutes. Push up arrow to increase minute setting. (Press and hold up arrow for approximately 2 seconds to have minute counter-run continuously. Release up button to stop minute counter.)

3. Push down arrow (A) to select the speed units. Push up arrow to select English (mph) or metric (km/hr), changing the speed display, and also when showing the odometer and trip displays.

4. Push down arrow (A) to select machine installed tire size. Push up arrow to select 14, 25, 26 or 27 in. tire size diameter.

5. Push down arrow again to exit display menu.
