Using Bench Seat Fold Down Rack

For extra storage or cargo box capacity, fold down the rear bench seat cargo rack.

CAUTION: Avoid injury! Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

Lowering Bench Seat with Fold Down Rack

1.

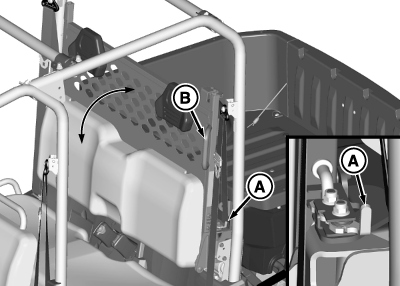

   MXT013629-UN-11MAY15

   Push latch lever (A) inward and use handle (B) to lower seat.

---




2.

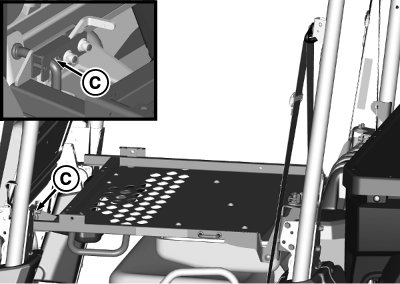

   MXT013630-UN-11MAY15

   Lower assembly until latch (C) locks into place.

---

Using Cargo Rack

CAUTION: Avoid injury! Riders can fall off and be injured or killed. Never carry riders in or on an attachment.

IMPORTANT: Avoid damage! Do not allow load to exceed width of fold-down rack and machine. Do not load cargo rack beyond weight capacity of 90 kg (200 lb.).

1.

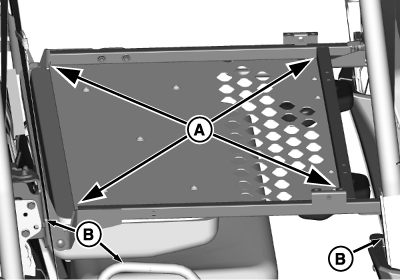

   MXT013631-UN-27MAR15

   Arrange load so the weight is centered over the main cargo area (A).

---




2. Secure the load to the tie-downs (B) on both sides in a safe and secure manner.

Raising Bench Seat with Fold Down Rack

1.

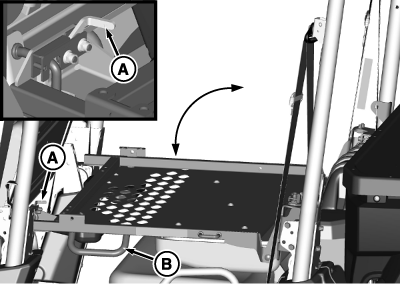

   MXT013632-UN-11MAY15

   Remove load from cargo rack.

---




2. Pull lever (A) upward and raise seat and cargo rack using handle (B).

3.

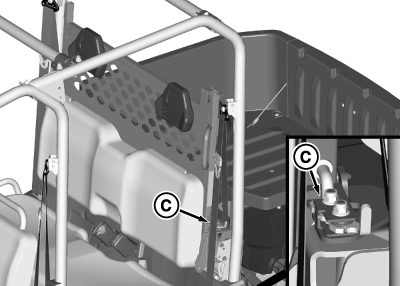

   MXT013633-UN-11MAY15

   Raise assembly until latch (C) secures cargo rack in raised position.

---
