Using Seat Belt

NOTE: Shoulder harness is sensitive. An emergency lock device is built into the belt for your protection. To engage harness, pull harness slowly. Attempting to pull too fast or in a jerking motion engages the locking mechanism and the harness does not release.

Periodically inspect seat belts for wear or damage. See Inspecting Seat Belt in SERVICE MISCELLANEOUS.


Fasten Belt

  1. MXT016160
    MXT016160-UN-21OCT15

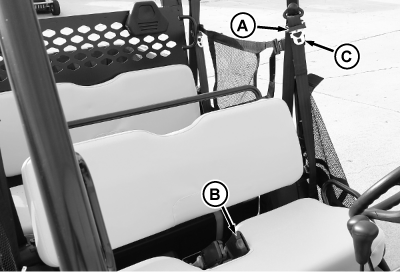

    Picture Note: Machine with front bench seat shown. Seat belt components are in same locations with front bucket seats.

    Grasp outer seat belt connector (A) from behind seat, pull out and across body to inner connector (B), at inside of seat.


  2. Adjust outer connector up or down along belt for best fit.

  3. Push outer connector lower half (C) firmly into inner connector until it locks.

  4. Snug the seat belt across the hips, on top of the thighs.


Release Belt

  1. To release seat belt, press red button on inner connector.

OUMX068,0000E4F-19-20151106
