Inspecting Seat Belt

MXT016163-UN-22OCT15

IMPORTANT: Avoid damage! Do not bleach or dye webbing. Webbing can become severely weakened by this process. Do not use a pressure washer or other automatic washing machine to clean belt or connectors.

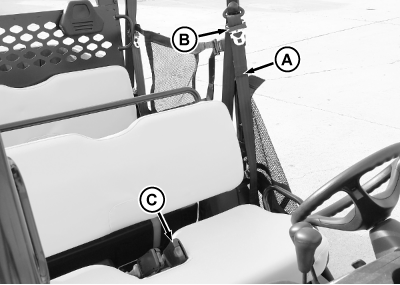

• Hand wash webbing (A) with garden hose and mild soap. Rinse thoroughly and air dry.
• Inspect outer seat belt connector (B) and inner connector (C) for damage or wear. If assembly does not operate properly or if the webbing is torn or frayed, the seat belt must be replaced.
