Light Kits

Adjusting Lights

1. Adjust light direction:

•
  MXAL47322-UN-16APR13

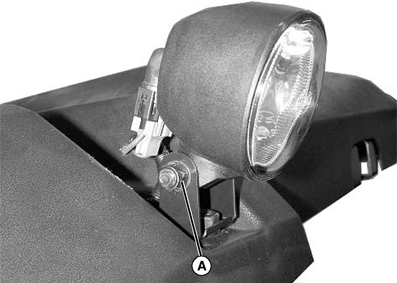

  Type A - Loosen locknut (A) on carriage bolt and direct light where needed. Tighten locknut to secure in position.

---

•
  MXAL47323-UN-16APR13

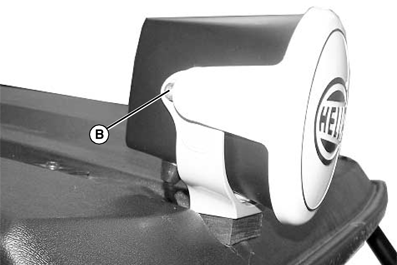

  Type B - Loosen two hex head bolts (B) on light and direct light where needed. Tighten both hex head bolts to secure in position.

---

•
  MXT016177-UN-28OCT15

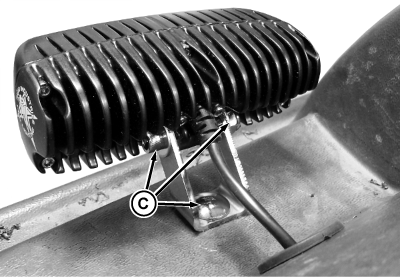

  LED Lights - Loosen hardware (C) and direct light where needed. Tighten hardware to secure in position.

---

Replacing Fuses

Most light kits have a replaceable fuse located on the wiring harness near the Protective Structure switch bank.
