Canvas Cab

Opening Rear Panel

1.

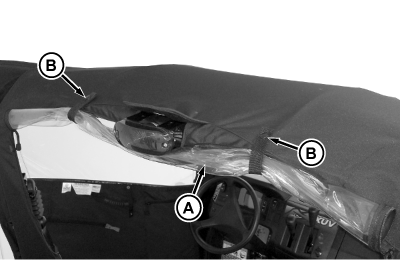

   MXT016157-UN-21OCT15

   Unzip plastic window (A).

---




2. Roll window up, wrap straps (B) around window, and snap into position as shown.

Using Transport Strap

To avoid damage to doors, use the transport strap when towing the machine on a trailer.

1. Open the rear panel.

2. Close cab doors.

3.

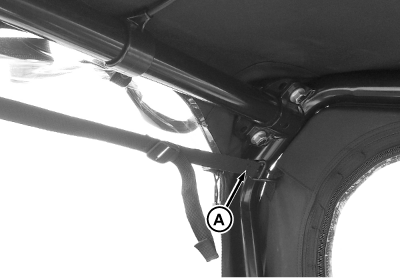

   MXT016175-UN-28OCT15

   Reach through the open rear panel to attach the transport strap (A) to one of the doors.

---




4. Route transport strap to attach to the other door.

Servicing Rear Panel

Snaps and zipper on the rear panel can be lubricated as needed with commercially available products.
