Adjusting Bucket Seat

CAUTION: Avoid injury! Never adjust seat while machine is moving. To prevent loss of machine control, stop machine before adjusting seat.

  1. Stop machine and move transaxle shift lever to the neutral position.

  2. Lock park brake.

  3. MXT016188
    MXT016188-UN-30OCT15

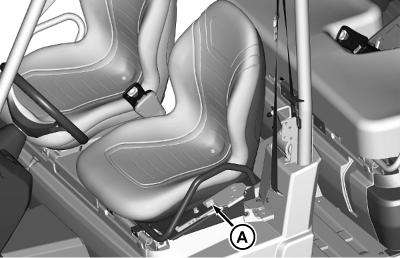

    Pull out on lever (A) and slide seat forward or rearward until seat locks in place.


  4. Release lever.

OUMX068,0000EA7-19-20151030
