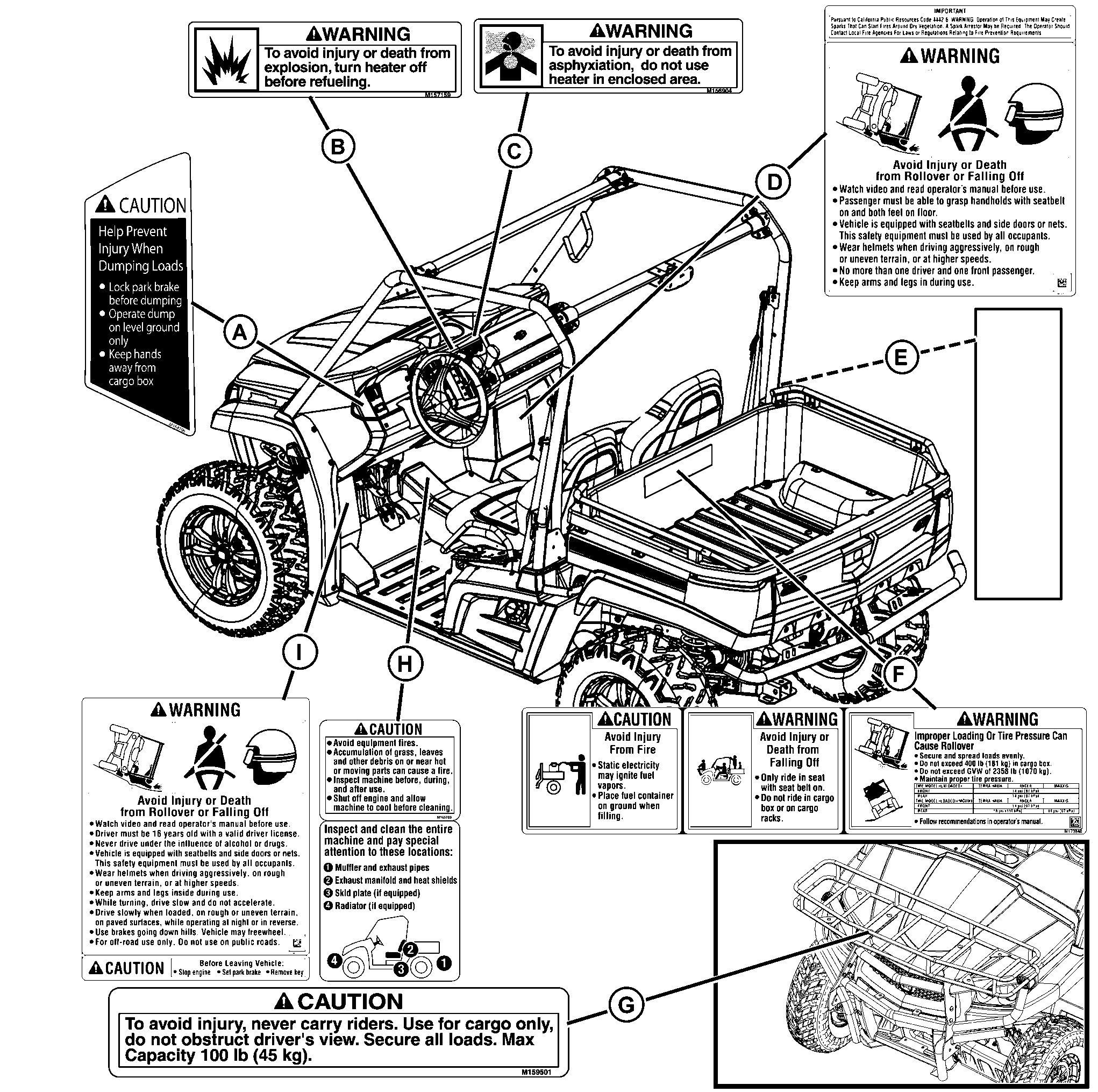

Safety Label Location—XUV590i (Bucket Seat)

MXT016240-UN-05NOV15

A - CAUTION M164706 (Machines with Power Lift)

B - WARNING M157159 (On Optional Heater)

C - WARNING M156904 (On Optional Heater)

D - WARNING M171712

E - Protective Structure Safety and Certification M176766

F - CAUTION/WARNING M173840

G - CAUTION M159501 (On Optional Front Rack)

H - CAUTION M165798

I - WARNING M171711
