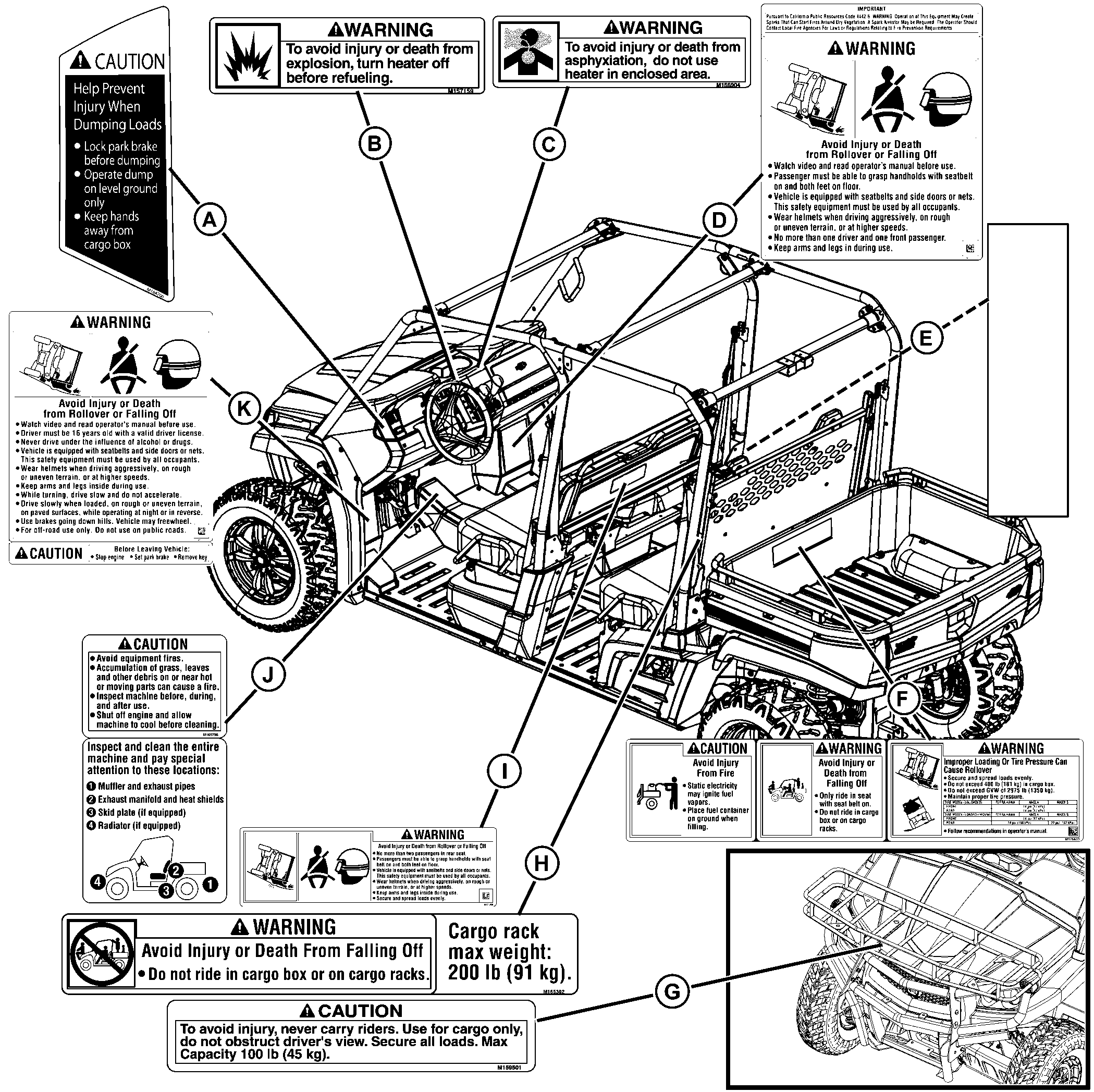

Safety Label Location—XUV590i S4 (Bench Seat)

MXT016245-UN-05NOV15

A - CAUTION M164706 (Machines with Power Lift)

B - WARNING M157159 (On Optional Heater)

C - WARNING M156904 (On Optional Heater)

D - WARNING M171712

E - Protective Structure Safety and Certification M176766

F - CAUTION/WARNING M176603

G - CAUTION M159501 (On Optional Front Rack)

H - WARNING M165302

I - WARNING M171200

J - CAUTION M165798

K - WARNING M171711
