Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

•

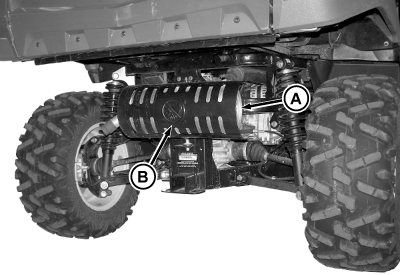

  MXT016251-UN-05NOV15

  Muffler (A) and muffler shield (B).

---

•

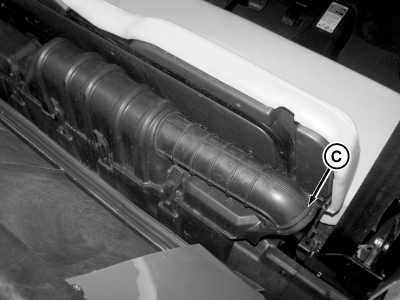

  MXT016252-UN-05NOV15

  Engine intake screens (C).

---

•

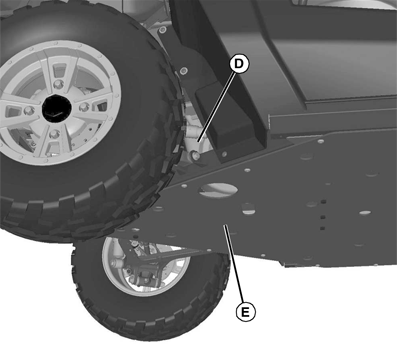

  MXAL47294-UN-16APR13

  Between engine (D) and skid plates (E) (if equipped).

---

•

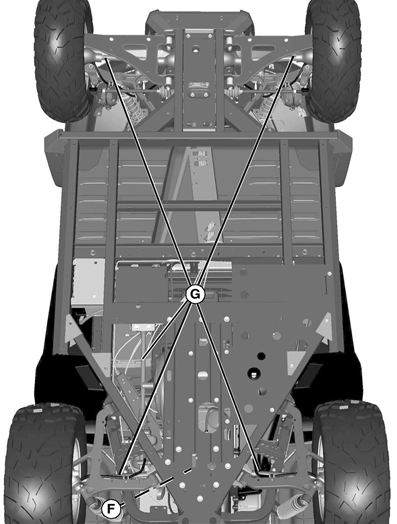

  MXAL47295-UN-16APR13

  On or near transmission (F) and drive line (G).

---

•

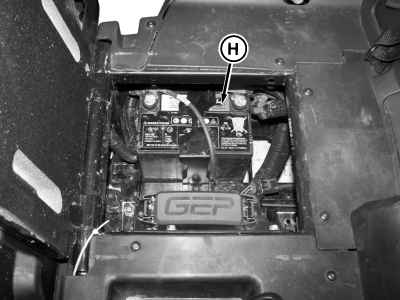

  MXT016253-UN-05NOV15

  Battery (H) and related wiring harnesses.

---
