Using Nets

CAUTION: Avoid injury! Do not operate vehicle with nets removed. Always park vehicle safely before opening net to exit.

Do not operate vehicle with nets or doors in the open position. All nets or doors must be closed while the vehicle is in use.

Entering vehicle:

1. Move net rearward out of entry and exit area, and enter vehicle.

2.
   MXT016164-UN-22OCT15

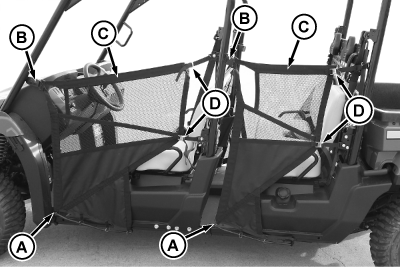

   Picture Note: XUV590i S4 model shown.

   Move bottom of net fully forward (A) and insert metal tab of net into buckle (B) until it latches.

---




3. After entering and exiting vehicle several times, check to be sure that the top strap (C) of the net is taut when net is latched. Tighten or loosen net at adjusting buckles (D) as needed.

Exiting vehicle:

1. Park vehicle safely.

2. Push button to release metal tab from buckle (B).

3. Move net rearward out of entry and exit area, and exit vehicle.
