Using Hand Holds (Bench Seat)

MXT016159
MXT016159-UN-26OCT15

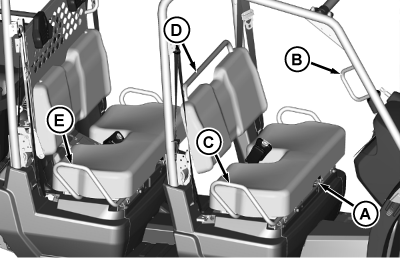

Picture Note: XUV590i S4 model shown.

Hand holds are provided for passenger balance.

  • When a front seat passenger is present, they must use two of the three hand holds at all times while the machine is moving: The center hand grip (A), Protective Structure handle (B), or side rail (C).
  • When a rear seat passenger is present, they must use one of the two hand holds at all times while the machine is moving: seat handle (D) or side rail (E).

OUMX068,0000EC3-19-20151105
