Using Storage Trays

CAUTION: Avoid injury! Never store flammable, heavy, or loose breakable objects in the storage tray. Always latch hood before operating machine.

IMPORTANT: Avoid damage! Do not store items that will not allow the hood to close properly. Properly secure loose or sharp items. These items may damage the storage tray or other items within the tray.

Under Hood

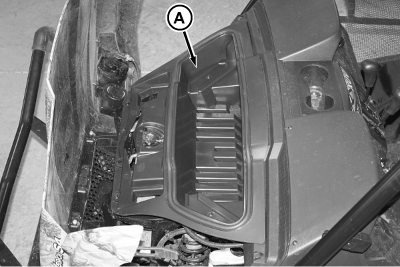

MXT016256-UN-06NOV15

Under hood storage tray (A) is located in front of machine under the hood.

1. Open hood to access the storage tray.

2. Secure all items to prevent damage from movement while operating the machine.

3. Close hood.

Under Seat (XUV590i with Front Bench Seat)

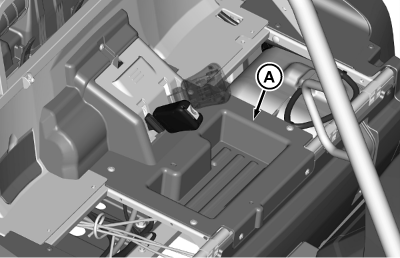

MXT016238-UN-03NOV15

1. Raise bench seat to access the storage tray.

2. Secure all items to prevent damage from movement while operating the machine.

3. Lower bench seat.

Under Seat (XUV590i S4 with Front Bench Seat)

Front Seat

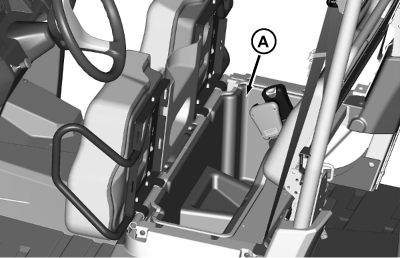

MXT016170-UN-23OCT15

1. Raise front bench seat to access the storage tray.

2. Secure all items to prevent damage from movement while operating the machine.

3. Lower bench seat.

Rear Seat

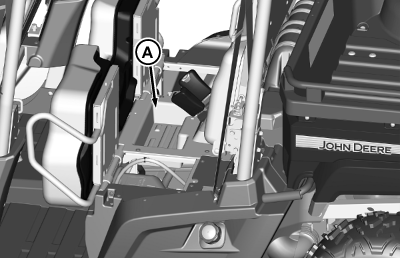

MXT016257-UN-06NOV15

1. Raise rear bench seat to access the storage tray.

2. Secure all items to prevent damage from movement while operating the machine.

3. Lower bench seat.

Under Seat (XUV590i S4 with Front Bucket Seat)

MXT016257-UN-06NOV15

1. Raise rear bench seat to access the storage tray.

2. Secure all items to prevent damage from movement while operating the machine.

3. Lower bench seat.
