Removing and Installing Side Panels

  1. Park machine safely. (See Parking Safely in SAFETY.)

  2. Tilt seats forward.

  3. Raise cargo box.

  4. MXT016440
    MXT016440-UN-11NOV15

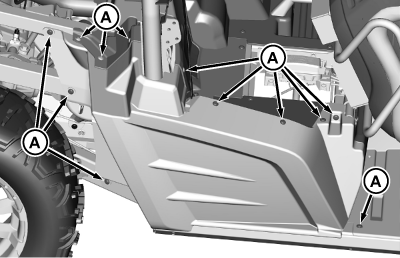

    Picture Note: Right side of machine shown.

    Remove 12 screws (A) and remove right side panel.


  5. CAUTION: Avoid injury! Gasoline is flammable. DO NOT SMOKE. Always work in a well-ventilated area away from open flame or spark-producing equipment, including equipment that utilizes pilot lights.

    For left side panel: Remove fuel filler cap first, then remove 12 screws and side panel.

  6. Install fuel filler cap back on fuel tank.


Installation

IMPORTANT: Avoid damage! Check to be sure that no wire harness is pinched between frame and side panels when installing.

Installation is the reverse of removal.
