Checking Radiator Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY.)

2. Raise cargo box.

3. Open hood.

4. Remove storage tray.

5. Tip seats forward.

6. NOTE: Visually inspect hoses for cracks and wear. To check for deterioration, squeeze hoses. Hoses must not be hard and brittle, nor soft or swollen.

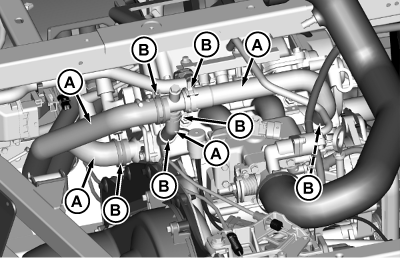

   MXT016443-UN-11NOV15


   MXT016444-UN-11NOV15

   Check coolant hoses (A) between intermediate tubes and engine for damage or cracking. Replace if necessary.

---




7. Check hose clamps (B) and tighten or replace as needed.

8.

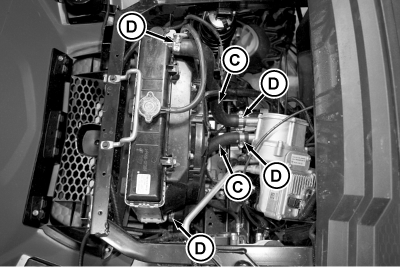

   MXT016445-UN-12NOV15

   Check radiator hoses (C) between intermediate tubes and radiator for damage or cracking. Replace if necessary.

---




9. Check hose clamps (D) and tighten or replace as needed.

10. Lower seats.

11. Install storage tray.

12. Close hood.

13. Lower cargo box.
