Removing and Installing Seat Closeout Panel

CAUTION: Avoid injury! Touching hot surfaces can burn skin. The engine, components, and fluids are hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

Removing

1. Park machine safely. (See Parking Safely in SAFETY.)

2. Allow engine to cool.

3. Raise and secure cargo box with latch support.

4.
   MXT016433-UN-10NOV15

   Picture Note: XUV590i with bench seat. Seat removed for better view.


   MXT016434-UN-11NOV15

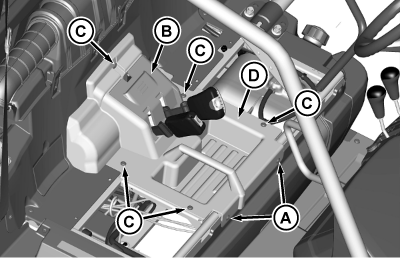

   Picture Note: XUV590i with bucket seats. Seats removed for better view.


   MXT016435-UN-11NOV15

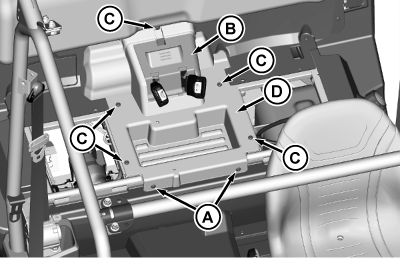

   Picture Note: XUV590i S4, seat removed for better view.

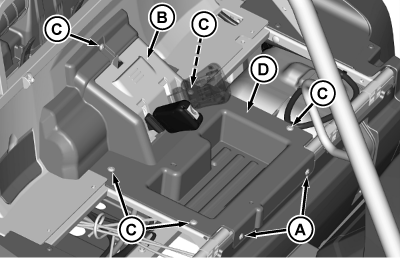

   Remove two Torx head screws (A).

---




5. Tilt seats forward.

6. Remove access cover (B).

7. Remove five Torx head screws (C) and remove center panel (D).

8. Remove side panels. (See Removing and Installing Side Panels.)

9.
   MXT016446-UN-12NOV15

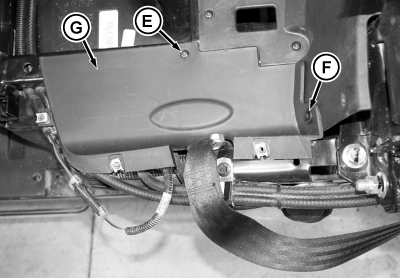

   Remove Torx head screw (E) and push retainer (F). Remove panel (G).

---




10. Repeat for opposite side.

11.
    MXT016448-UN-12NOV15

    Machines with front bench seat:

    1. Remove seat back.

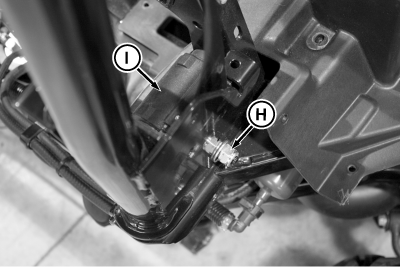

    2. Remove nut (H) and seat belt retractor (I) from frame. Repeat on opposite side.

    ---




    3.
       MXT016447-UN-12NOV15

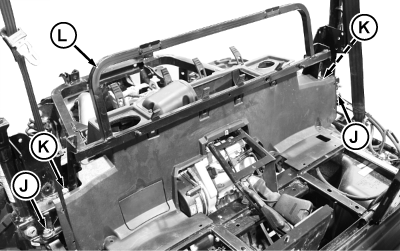

       Remove lower bolt and nut (J).

    4. Remove upper nut (K) and remove support (L).

---




12. Machines with rear bench seat:

    • Lower seat fold down rack.



13.
    MXT016449-UN-12NOV15

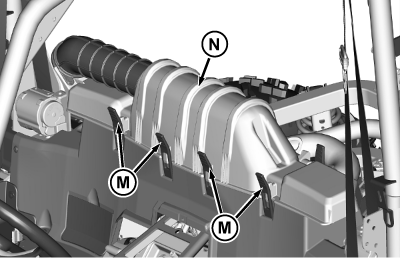

    Remove four rubber latch straps (M) on each side of cover (N). Remove cover.

---




14.
    MXT016450-UN-12NOV15

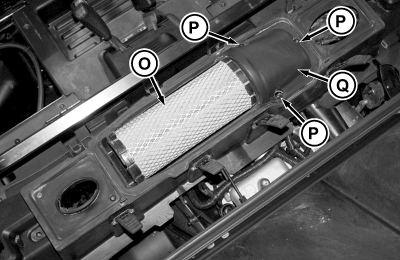

    Remove filter element (O).

---




15. Remove three screws (P) and cover (Q).

16.
    MXT016452-UN-12NOV15

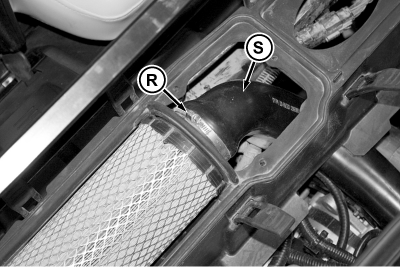

    Loosen clamp (R) and remove intake hose (S) from housing.

---




17.
    MXT016451-UN-12NOV15

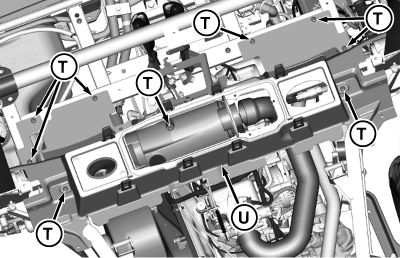

    Remove nine Torx head screws (T) and remove seat closeout panel (U).

---

Installing

• Installation is the reverse order of removal.
