Inspecting Axle Shaft CV Boots

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

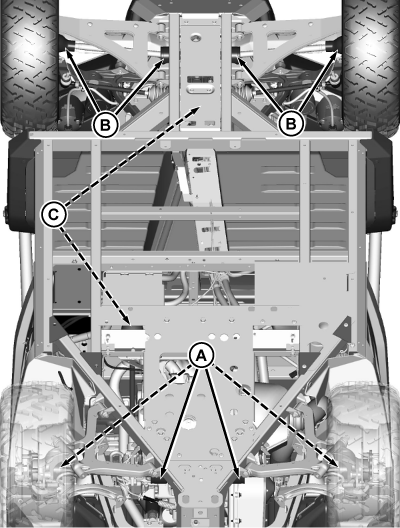

   MXT016472-UN-16NOV15

   Viewed from under the machine.

   Inspect four rear CV boots (A) for tears or punctures.

---




3. Inspect four front CV boots (B) for tears or punctures.

4. Inspect front and rear drive shaft boot (C) for tears or punctures.

5. If replacement of a boot is necessary, see your John Deere dealer.
