Inspecting Steering Tie Rod Boots

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXT016513
    MXT016513-UN-16NOV15

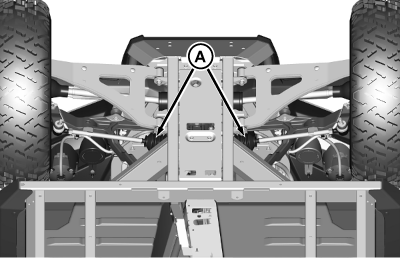

    Viewed from under machine.

    Inspect two front steering tie rod boots (A) for tears or punctures.


  3. If replacement of a boot is necessary, see your John Deere dealer.

OUMX068,0000EE3-19-20151116
