Servicing Clutches and Drive Belt

CAUTION: Avoid injury! Rotating parts catch fingers, loose clothing, or long hair. To adjust or service machine, wait for engine and all moving parts to stop before leaving operators station.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Remove cargo box. (See Removing and Installing Cargo Box in SERVICE MISCELLANEOUS.)

  3. MXT016514
    MXT016514-UN-16NOV15

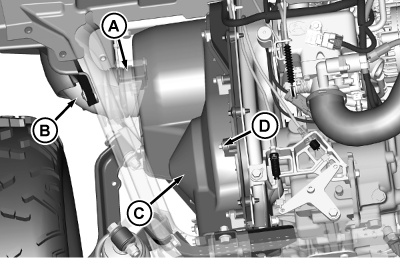

    Loosen inner clamp (A) and remove air inlet duct (B) from upper clutch enclosure cover (C).


  4. Remove ten bolts (D) and upper clutch enclosure cover (C).

  5. MXT016515
    MXT016515-UN-16NOV15

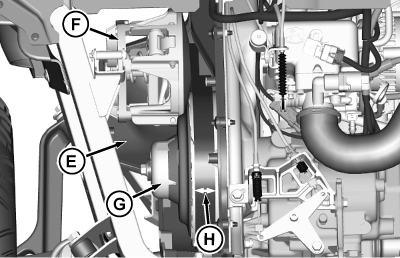

    Using compressed air, clean inside of upper enclosure cover, lower enclosure cover (E), and drive (F) and driven clutch (G) assemblies.


  6. Rotate and inspect drive belt for wear or damage.

  7. Measure the top surface of the belt width at (H). Verify that belt width meets minimum width specification.

    ItemMeasurementSpecification
    Drive Belt Top Surface MinimumWidth29 mm (1.1 in)

  8. Replace drive belt if necessary. (See Replacing Drive Belt.)

  9. Inspect and clean air intake. (See Servicing Air Intake in SERVICE ENGINE.)

  10. Install clutch enclosure cover.

  11. Install air inlet hose with hose clamps.

  12. Install cargo box. (See Removing and Installing Cargo Box in SERVICE MISCELLANEOUS.
