Removing and Installing Battery


Removing

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Tilt seat forward.

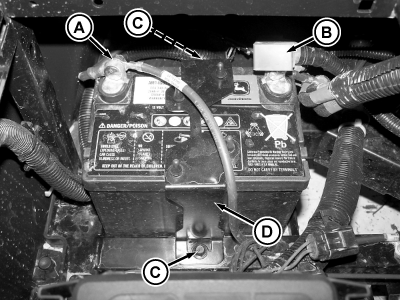

  3. MXT016516
    MXT016516-UN-16NOV15

    Disconnect all black negative cables (A) from battery first.


  4. Slide back red protective cover (B) and disconnect all red positive cables.

  5. Remove two bolts (C) that secures battery hold-down (D) and remove hold-down from around battery.

  6. Lift battery from machine.


Installing

  1. Install battery into machine with negative (-) terminal positioned toward front of machine and the battery seated properly in the battery tray.

  2. Install battery hold-down firmly against battery and install two bolts.

  3. Connect all red positive cables to positive (+) battery terminal first. Tighten the connections.

  4. Connect all black negative cables to negative (-) battery terminal. Tighten the connections.

  5. To help prevent corrosion, apply general-purpose grease or silicone spray to battery terminals.

  6. Slide red protective cover down the battery positive cable and seat it over the positive (+) terminal.

  7. Lower seat.
