Checking and Replacing Fuses

IMPORTANT: Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amp rating.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXT016517
    MXT016517-UN-16NOV15

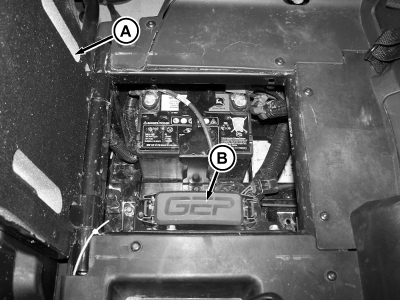

    Tilt seat (A) forward.


  3. Remove cover (B).

  4. MXT016518
    MXT016518-UN-16NOV15

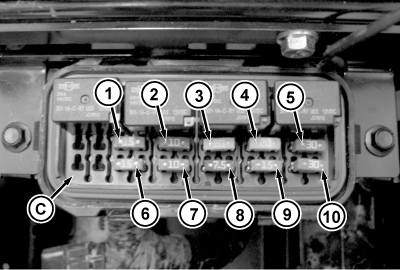

    Pull fuse from load center (C) under seat.


  5. MXT016519
    MXT016519-UN-17NOV15

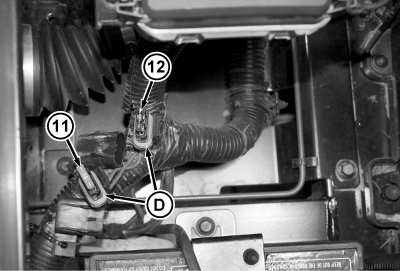

    Locate two fuse holders (D) near battery


  6. Pull fuse from fuse holder.

  7. Fuse identification:

    Position

    Circuit

    Fuse Size

    1

    Fuel Pump

    15 A

    2

    Headlights

    10 A

    3

    Starter Solenoid

    20 A

    4

    Engine Power Relay (Switch)

    20 A

    5

    Rear Accessory

    30 A

    6

    Key Switch (Unswitched Power)

    15 A

    7

    Power Port

    10 A

    8

    Engine Power Relay (Coil)

    Instrument Cluster (B+)

    7.5 A

    9

    ECU (B+)

    15 A

    10

    Front Accessory

    30 A

    11

    Radiator Fan

    15 A

    12

    EPAS

    35 A

  8. MXT013959
    MXT013959-UN-07APR15

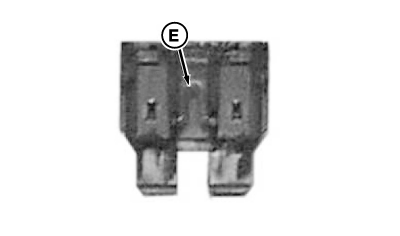

    Check visually for broken filament at location (E) in fuse.


  9. Push new fuse of correct amp rating into proper position in fuse block.

  10. Install fuse box cover and lower seat.

OUMX068,0000EE6-19-20151218
