Servicing Nets (XUV590i S4)

  1. NOTE: Perform the following procedure for all the nets on your machine.

    To make sure that the net is taut, follow the Using Nets instructions in OPERATING.

  2. MXT016165
    MXT016165-UN-22OCT15

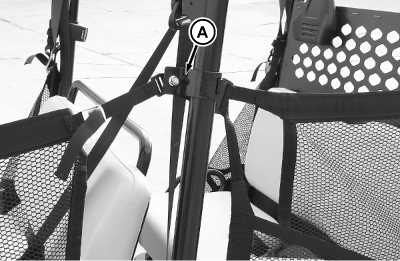

    To keep nets taut, loosen hardware and adjust clamp (A) as needed. Tighten to 16 N·m (12 lb·ft).

OUMX068,0000EE9-19-20151117
