Removing and Installing Seats


Remove Bench Seat

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Tip seat forward.

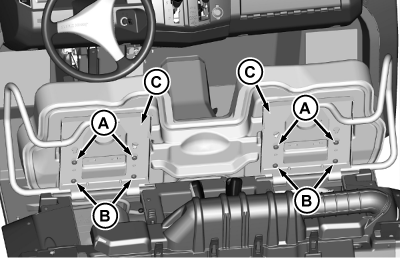

  3. MXT016679
    MXT016679-UN-01DEC15

    Loosen upper four screws (A).


  4. Remove bottom four screws (B).

  5. Lift seat up and remove from seat brackets (C).

  6. Installation is the reverse of removal.


Remove Seat Back

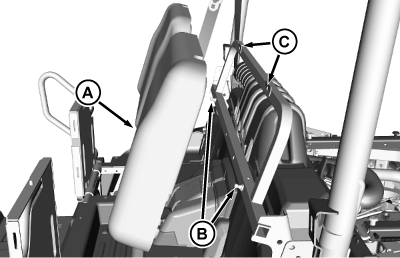

  1. MXT016680
    MXT016680-UN-01DEC15

    Pull out on bottom of seat back (A) and remove seat back from both studs (B) on seat frame.


  2. Lift seat back and remove from tabs (C) on seat frame.

  3. Installation is the reverse of removal.

    • Make sure that the tabs on the seat frame are inserted into the slots in the top of the seat back.
