Replacing Drive Belt

CAUTION: Avoid injury! Rotating parts catch fingers, loose clothing, or long hair. To adjust or service machine, wait for engine and all moving parts to stop before leaving operators station.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Remove cargo box. (See Removing and Installing Cargo Box in SERVICE MISCELLANEOUS.)

  3. Remove clutch enclosure cover and clean inside. (See Servicing Clutches and Drive Belt.)

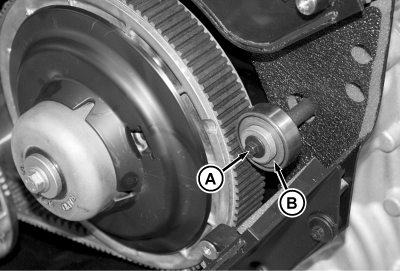

  4. MXT016681
    MXT016681-UN-02DEC15

    Remove screw (A) and bearing with bushings (B).

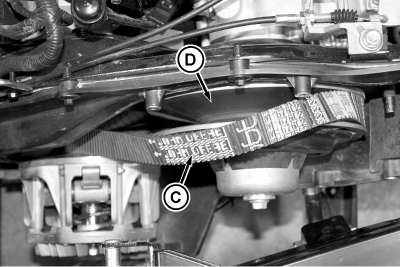

  5. MXT016682
    MXT016682-UN-02DEC15

    Remove drive belt (C) from driven clutch (D).

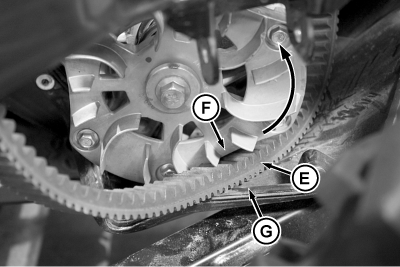

  6. MXT016683
    MXT016683-UN-02DEC15

    Rotate drive clutch counterclockwise so that belt (E) clears clutch fan (F) and housing (G).


  7. Remove belt.

  8. Install new belt.

  9. Install bearing with bushings.

  10. Install clutch enclosure cover.

  11. Install air inlet hose with hose clamps.

  12. Install cargo box. (See Removing and Installing Cargo Box in SERVICE MISCELLANEOUS.)

OUMX068,0000F1A-19-20151202
