Tire Rack


Using Tire Rack

MXT008882
MXT008882-UN-05SEP13

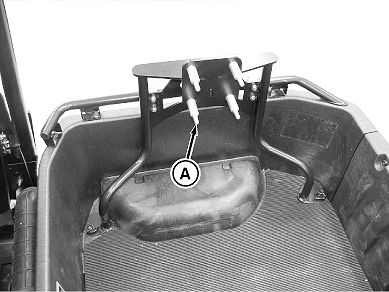

  1. Remove four lug nuts from four lug bolts (A).

  2. MXAL47332
    MXAL47332-UN-16APR13

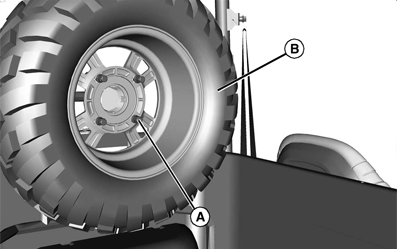

    Install tire (B) as shown (facing outward same as tires on machine) on four lug bolts (A) and secure with lug nuts.
