Replacing Headlight Bulb

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Open the hood.

  3. Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

    Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt will reduce bulb life. Handle bulb by the base or with a clean cloth or gloves.

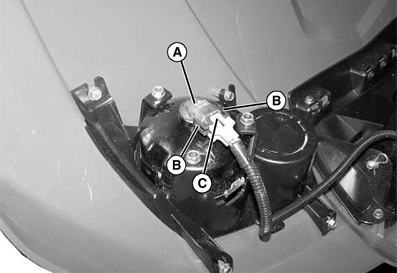

    MXAL47380
    MXAL47380-UN-16APR13

    Rotate bulb socket (A) 1/8 of a turn counterclockwise and remove socket from housing.


  4. Pull outward slightly on tabs (B), and disconnect wire connector (C) from socket. Discard the bulb/socket assembly.

  5. Connect wiring connector to new bulb/socket assembly. Install the assembly into housing and rotate 1/8 turn to lock in place.

  6. Test head lamp function.
