Check Transaxle Oil Level

MXT010000-UN-08APR14

1. Avoid damage! Hot hydraulic oil expands and can show incorrect oil level. Check oil level:

   • When oil is cold.
   • With engine not running.



   Park the vehicle safely.

2. Raise and secure cargo box with latch support.

3. Avoid damage! Dirt and debris in oil may cause damage to the transaxle. Clean area around opening before removing dipstick.

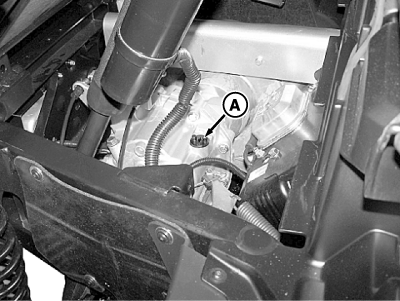

   Remove dipstick (A) located on the top of the transaxle housing. Wipe dipstick clean.

4. Check oil level by setting dipstick on threads in transaxle case, then removing and checking oil level.

5. Add oil as needed through the dipstick fill hole.

6. Install and tighten dipstick.

7. Lower the cargo box.
