Using Bench Seat Fold Down Rack

For extra storage or cargo box capacity, fold down the rear bench seat cargo rack.

Avoid injury! Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

Lowering Bench Seat with Fold Down Rack

1.

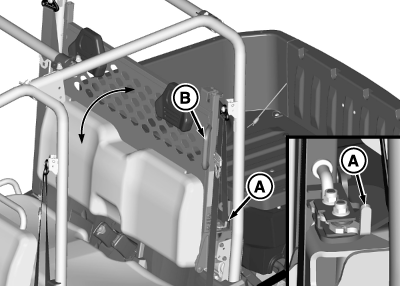

   MXT013629-UN-11MAY15

   Push latch lever (A) inward and use handle (B) to lower seat.

---




2.

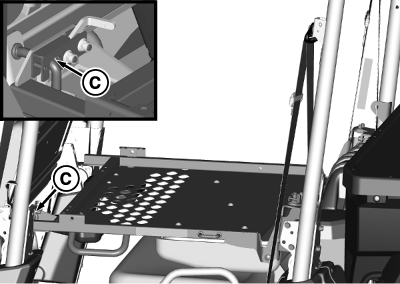

   MXT013630-UN-11MAY15

   Lower assembly until latch (C) locks into place.

---

Using Cargo Rack

Avoid injury! Riders can fall off and be injured or killed. Never carry riders in or on an attachment.

Avoid damage! Do not allow load to exceed width of fold-down rack and machine. Do not load cargo rack beyond weight capacity of 90 kg (200 lb.).

1.

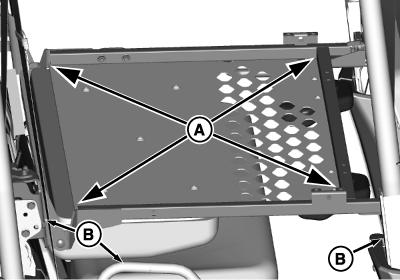

   MXT013631-UN-27MAR15

   Arrange load so the weight is centered over the main cargo area (A).

---




2. Secure the load to the tie-downs (B) on both sides in a safe and secure manner.

Raising Bench Seat with Fold Down Rack

1.

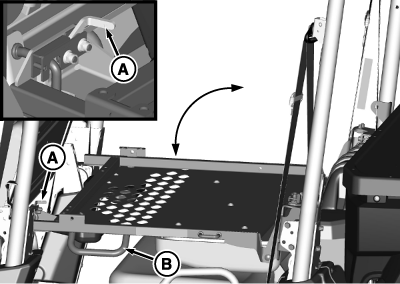

   MXT013632-UN-11MAY15

   Remove load from cargo rack.

---




2. Pull lever (A) upward and raise seat and cargo rack using handle (B).

3.

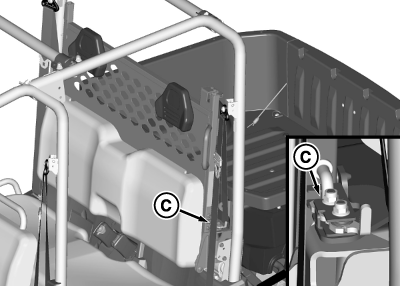

   MXT013633-UN-11MAY15

   Raise assembly until latch (C) secures cargo rack in raised position.

---
