Removing and Installing Side Panels

  1. Park machine safely. (See Parking Safely in SAFETY.)

  2. Tilt seats forward.

  3. Raise cargo box.

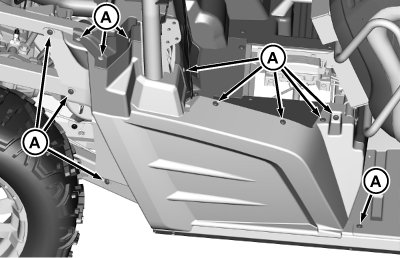

  4. MXT016440
    MXT016440-UN-11NOV15

    Picture Note: Right side of machine shown.

    Remove 12 screws (A) and remove right side panel.


  5. Avoid injury! Gasoline is flammable. DO NOT SMOKE. Always work in a well-ventilated area away from open flame or spark-producing equipment, including equipment that utilizes pilot lights.

    For left side panel: Remove fuel filler cap first, then remove 12 screws and side panel.

  6. Install fuel filler cap back on fuel tank.


Installation

Avoid damage! Check to be sure that no wire harness is pinched between frame and side panels when installing.

Installation is the reverse of removal.
