Servicing Nets (XUV590i S4)

  1. Perform the following procedure for all the nets on your machine.

    To make sure that the net is taut, follow the Using Nets instructions in OPERATING.

  2. MXT016165
    MXT016165-UN-22OCT15

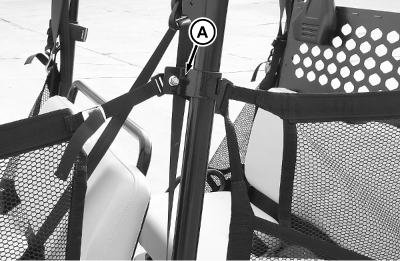

    To keep nets taut, loosen hardware and adjust clamp (A) as needed. Tighten to 16 N·m (12 lb·ft).
