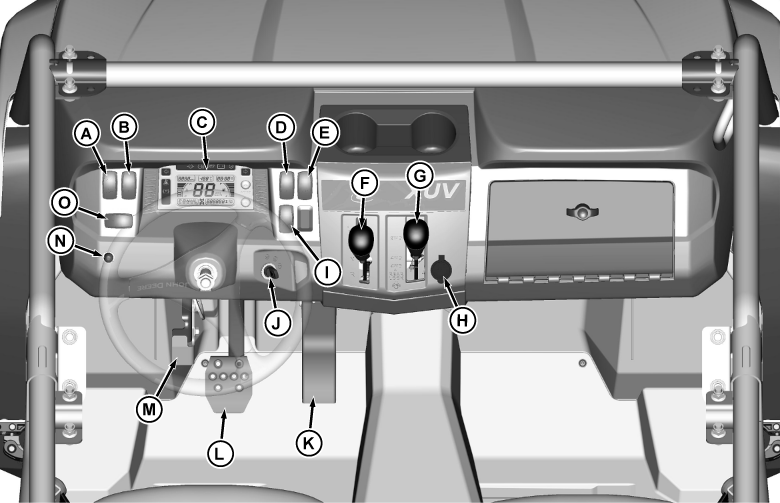

Operator Station Controls

MXT016686-UN-03DEC15

Some controls may not be installed on your machine.

A - Cargo Box Power Lift Switch
B - Hazard Switch
C - Instrument Panel
D - Headlight Switch
E - Headlight Switch (High Beam)
F - Transaxle Shift Lever
G - 2WD/4WD Lever
H - 12V DC Accessory Outlet
I - Horn Switch
J - Ignition Key Switch
K - Accelerator Pedal
L - Brake Pedal
M - Park Brake Pedal
N - Indicator Light (Green)
O - Turn Signal Switch
