Install Snowblower

  1. IMPORTANT: Avoid damage! Both the auger gear box and the snowblower drive gear box oil levels must be checked, and oil added if necessary, before installation. This procedure must be performed with the snowblower removed from the machine. See “Checking Gearbox Oil” in the SERVICE section for details.

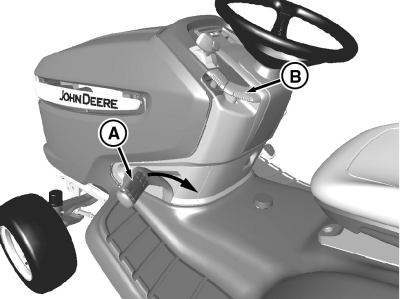

    MXT007403
    MXT007403-UN-06JUN13

    A - Lift Pedal

    B - Lock Lever

    Lower attachment linkage:

    44 in Models with Mechanical Lift System

    1. CAUTION: Avoid injury! Lift pedal is spring-assisted and can have unexpected movement. Lock lift pedal when installing or removing attachment.

      Pull lift pedal (A) back by hand to lower linkage to the lower/down position.

    2. Pull lock lever (B) up to lock linkage in the lowered position.

    44 in and 47 in Models with Hydraulic Lift System

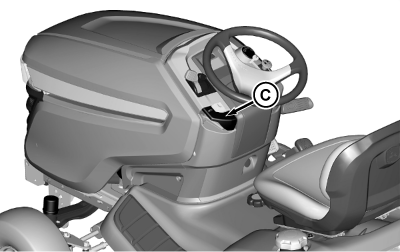

    MXT013992
    MXT013992-UN-18JUN15

    C - Lift Lever

    a. Push down on lift lever (C).

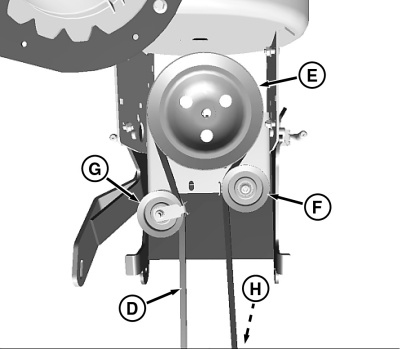

  2. MXT007280
    MXT007280-UN-29MAY13

    Picture Note: Top view, gear box not shown for clarity.

    D - Drive Belt

    E - Gearbox Drive Sheave

    F - Idler Sheave

    G - Tensioning Sheave

    H - Machine Drive Sheave

    Check snowblower drive belt (D) for wear and proper routing:

    • Belt is routed around gear box drive sheave (E), inside belt guards on idler sheave (F) and tensioning sheave (G), then to machine drive sheave (H).
    • The tensioning spring connects to the tensioning sheave pivot arm, under the sheave.
    • Belt must be installed on gear box drive sheave from below, if it requires replacement.

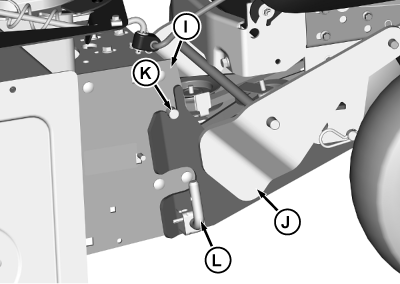

  3. MXT013981
    MXT013981-UN-16JUN15

    I - Blower Support

    J - Hitch, Front Attachment

    K - Support Pins

    L - Spring-Loaded Pins

    Align blower support (I) with front attachment hitch (J).



  4. Install blower support pins (K) into top slots in front attachment hitch.

  5. Pull spring-loaded pins (L), on each side, outward and lower blower support bracket. Release spring-loaded pins and lock blower support in place.

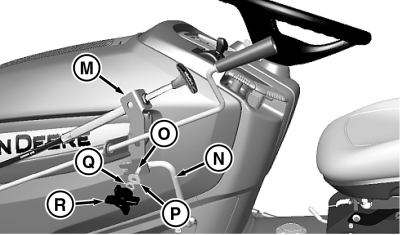

  6. MXT007362
    MXT007362-UN-29MAY13

    M - Chute and Spout Bracket

    N - Rotation Handle Bracket

    O - Carriage Bolt, M8 x 20

    P - Washer, M8.4

    Q - Lockwasher

    R - Knob

    Align the slot at the bottom of the chute and discharge spout bracket (M) over the locating screw at the outside of the rotation handle bracket (N).



  7. Insert carriage bolt (O), from the inside, through the square mounting hole in the rotation handle bracket (N). Continue through the mounting hole at the bottom of chute and discharge spout bracket (M). Secure with an M8.4 washer (P), 3/8 in lockwasher (Q), and knob (R).

  8. CAUTION: Avoid injury! Attachment can lower rapidly. Attachment is heavy and can crush.

    Keep bystanders, especially children, away when lowering attachment.

    Support raised attachment with a mechanical stop or lower completely to the ground before servicing.

    Install drive belt on machine drive sheave:

    1. Raise and block-up snowblower.

    2. To remove tension on belt, pull on spring-loaded tensioning sheave arm.

    3. Install belt on machine drive sheave (PTO clutch).

    4. Release tensioning sheave arm.

    5. Raise snowblower, remove support, and lower snowblower to ground.

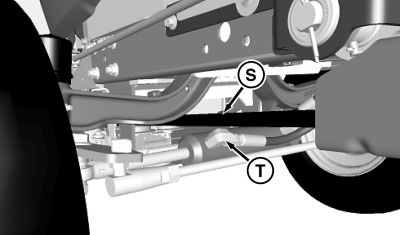

  9. MXT007363
    MXT007363-UN-29MAY13

    S - Drive Belt

    T - Steering Cylinder Fitting

    Check for interference between drive belt (S) and the left side fitting (T) on the machine steering cylinder. If necessary, rotate fitting down approximately 10° to eliminate interference and premature belt wear.



  10. Raise snowblower fully to test lift adjustment:

    Models with Mechanical Lift System

    • To unlock latch, pull up slightly on foot pedal (A) and push down on lock lever (B). To lock blower in raised position, push foot pedal all the way down and lift lock lever. The snowblower must be approximately 12.7 cm (5 in) off the ground when in fully raised position.
    • If snowblower does not lock in the raised position, adjust lift height down and recheck.

    Models with Hydraulic Lift System

    • Start engine and pull up on lift lever (C) to raise snowblower. The snowblower must be approximately 12.7 cm (5 in) off the ground when in the fully raised position.
    • Adjust lift height if necessary and check for any binding of lift linkage.

OUMX068,0000C23-19-20150727
