Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.

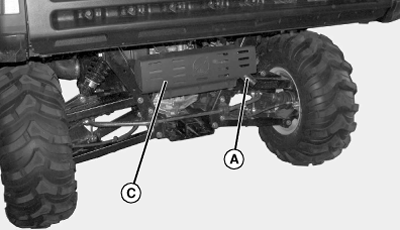

   MXAL43143-UN-19MAR13

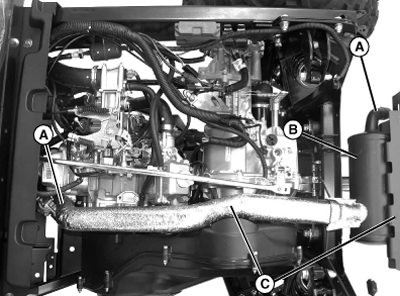

   MXAL43144-UN-19MAR13

   Muffler pipes (A), muffler (B), and muffler shields (C).

---




2.
   MXAL43145-UN-19MAR13

   Intake screens (D), and radiator cooling fins (E).

---




3.

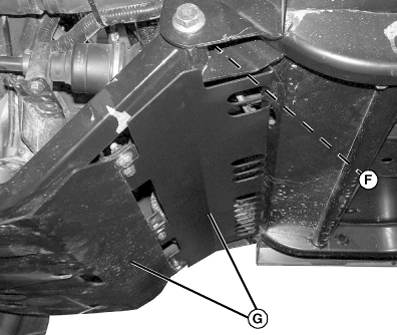

   MXAL43146-UN-19MAR13

   Between engine (F) and skid plates (G) (if equipped).

---




4.

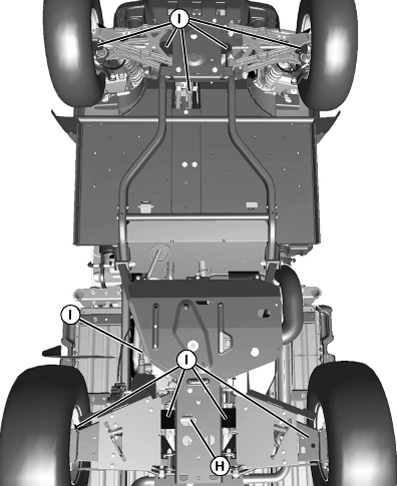

   MXAL43147-UN-19MAR13

   On or near transmission (H) and driveline (I).

---




5.

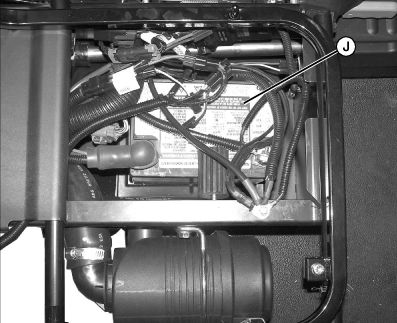

   MXAL43148-UN-19MAR13

   Battery (J) and related wiring harnesses.

---
