Lubricating Drive Line

MXAL43195-UN-19MAR13

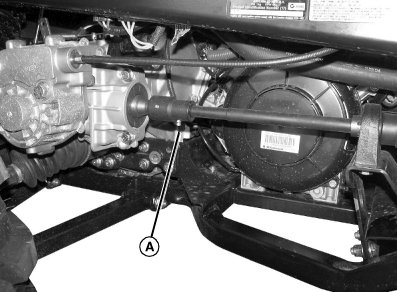

View from right rear side of vehicle - on rear drive shaft (shaft guard removed).

MXAL43196-UN-19MAR13

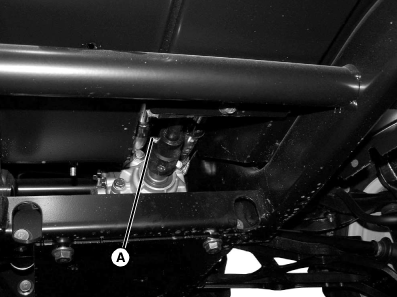

View from under vehicle - on front drive shaft.

Lubricate two grease fittings (A) on drive line with one or two shots of grease.
