Checking Secondary Driven Clutch Buttons

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

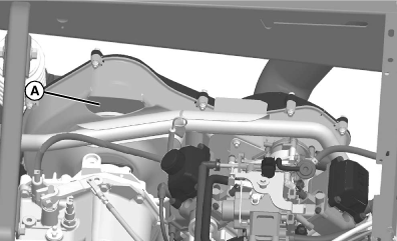

   NOTE: Clutch buttons can be inspected through enclosure exhaust port (A) with out removing clutch enclosure covers.


   MXAL43239-UN-19MAR13


   MXAL43240-UN-19MAR13

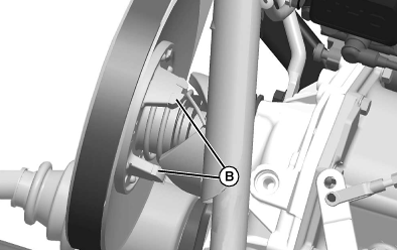

   Shown with clutch covers removed for clarity only.

---




3. Check for missing or worn clutch buttons (B).

   • There should not be any excessive wear, or metal-to-metal contact.
   • If replacement is necessary, see your John Deere dealer.



4. Lower the cargo box.
