Checking Radiator Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise cargo box.

3. Tip seats forward.

4. Open hood.

5. Remove storage tray.

6. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.


   MXAL43220-UN-19MAR13


   MXT012240-UN-20SEP14

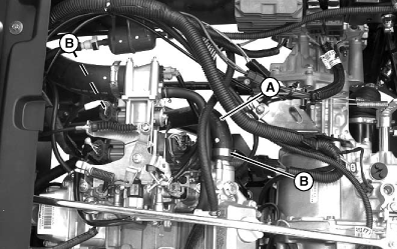

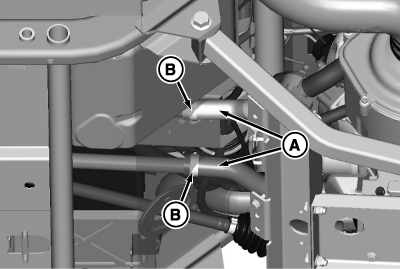

   Check radiator hoses (A) between intermediate tubes and engine for damage or cracking. Replace if necessary.

---




7. Check hose clamps (B) and tighten or replace as needed.

8.
   MXAL43222-UN-19MAR13

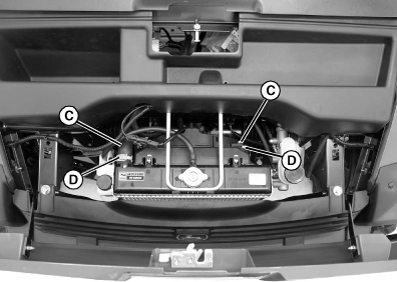

   Check radiator hose (C) between intermediate tubes and radiator for damage or cracking. Replace if necessary.

---




9. Check hose clamps (D) and tighten or replace as needed.

10. Install storage tray.

11. Close hood.

12. Tip seats back.

13. Lower cargo box.
