Checking and Replacing Fuses

IMPORTANT: Avoid damage! The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Raise hood and remove storage tray.

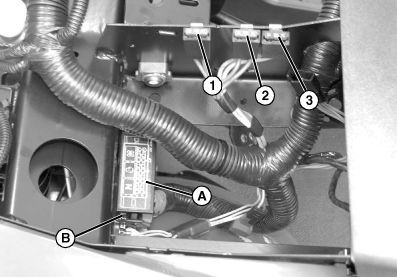

  3. MXAL43255
    MXAL43255-UN-19MAR13

    Fuse identification:

    Position

    Circuit

    Fuse Size

    1

    Accessory

    40 amp

    2

    Accessory

    40 amp

    3

    Fan (orange wire)

    30 amp


  4. Pull fuse from fuses installed onto frame area, as shown.

  5. Look for broken filament in fuse (See Checking Fuse Filaments in SERVICE MISCELLANEOUS).

  6. Push new fuse of correct amp rating into proper position in fuse block.

  7. Remove fuse relay block cover (A) to gain access to relay block (B).

  8. MXAL43256
    MXAL43256-UN-19MAR13

    Fuse identification on relay block (B):

    Circuit

    Fuse Size

    Part #

    (1) Neutral Relay

    N/A

    N/A

    (2) Start Relay

    N/A

    N/A

    (3) Fan Relay

    N/A

    N/A

    (4) Voltage Regulator

    30 amp

    57M8163

    (5) Front Dash Power Port

    10 amp

    57M7689

    (6) Center Power Port

    5 amp

    57M7688

    (7) Instrument Cluster

    5 amp

    57M7688

    (8) Start Relay

    15 amp

    57M7690

    (9) Key Switch

    20 amp

    57M7691

    (10)ECU

    10 amp

    57M7689

    (11) Headlights

    10 amp

    57M7689


  9. Look for broken filament in fuse (See Checking Fuse Filaments in SERVICE MISCELLANEOUS).

  10. Push new fuse of correct amp rating into proper position in fuse block.

  11. Install storage tray and lower hood.

OUMX068,00009B6-19-20140909
