Using Instrument Display

NOTE: Model number displays during machine start-up. Depending on machine model, some functions are not available.

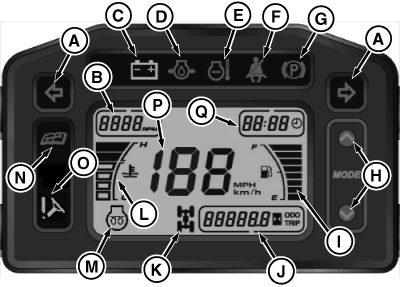

MXT008442-UN-27AUG13

A - Turn Signal Lights - The left or right signal light illuminates when activating turn signal switch while ignition key switch is in RUN or STOP position. (NOTE: The turn signal lights are active only if you have installed an optional kit on your machine.)

B - RPM Indicator - This indicator shows engine RPMs.

C - Battery Discharge Light - This light illuminates when the ignition key switch is in the RUN position and the engine is not running. If this light illuminates when the engine is running, see your John Deere dealer.

D - Engine Oil Pressure Light - This light illuminates when the ignition key switch is in the RUN position and the engine is not running. If this light turns on while the engine is running, engine oil pressure is too low. Stop engine.

E - Engine Coolant Temperature Light - This light will illuminate for several seconds after the ignition key switch is turned from the STOP position to RUN position. It illuminates when the coolant temperature reaches an overheat condition. If this light flashes or remains on during operation, remove load on machine immediately. Ensure that fan is operating and that there is no blockage of the radiator. Check coolant level only when radiator is cool enough to touch with bare hands.

F - Seat Belt Indicator Light - This light illuminates if the driver seat belt is not adequately secured.

G - Park Brake Light - Light illuminates when the ignition key switch is in the RUN position and the park brake is partially or fully engaged into the locked position.

H - Arrow Keys - These buttons are used to activate certain instrument display functions. For detailed instructions, see Using Instrument Display Arrow Keys in OPERATING Section.

I - Gas Gauge - These bars display the current fuel level in the fuel tank. Each bar displays approximately 1/8 of a full fuel tank. If there is less than 1/8 of a tank (no bars illuminated) the gas symbol blinks.

J - Trip Meter, Odometer, Hourmeter Indicator - This indicator shows the accumulated kms/miles the machine has accumulated, along with a trip meter. The hour meter portion shows the accumulated number of operating hours the engine has run. The hour meter displays operating hours with the ignition key switch in the RUN position, and accumulates and displays operating hours when the engine is running. The hour meter is intended to provide a means of monitoring machine usage for maintenance purposes. Use the hour meter to determine when your machine has reached the recommended service intervals.

K - 2WD/4WD Display - This light illuminates when the four-wheel drive is active.

L - Coolant Temperature Gauge - These lights display the current engine temperature. If the temperature rises to an overheat condition, the engine coolant temperature light (E) illuminates.

M - Glow Plug Light (Diesel Engine Models Only) - This light illuminates when the key switch is placed in the RUN position and the engine/glow plugs are cold. After approximately 0-9 seconds, depending on temperature, the light turns off.

N - System Diagnostic Light (Gas Engine Models Only) - This light illuminates for up to 4 seconds when ignition key switch is turned to the RUN position. The light illuminates when sensors malfunction. If light is on, stop machine and shut off engine. If light is active after restart, contact your John Deere dealer.

O - Electric Power Assist Steering (EPAS) Indicator - The level of assist decreases as the speed increases, with full assist at zero speed. Normal steering operation has the EPAS indicator light off.

P - Speedometer - The speedometer indicates machine speed in km/h or mph.

Q - Clock - The clock shows the current time.
