Identify Parts

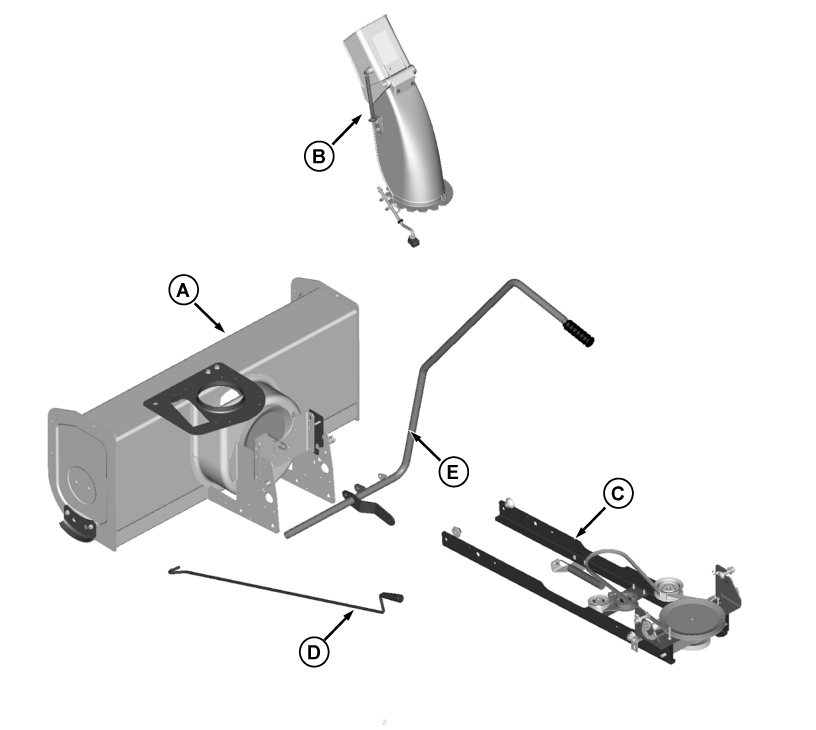

MXT014383-UN-17JUL15

Snowblower Parts

Quantity	Description
1	Housing (A)
1	Chute Assembly (Includes Spout and Cable) (B)
1	Frame (C)
1	Chute Control Handle (D)
1	Lift Lever Assembly (E)

Drive Parts

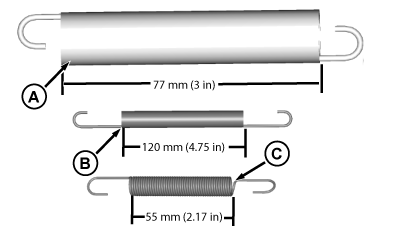

MXT014384-UN-21AUG15

Quantity	Description
1	Spring, Primary Tensioning, Electric Mower (A)
1	Spring, Secondary Tensioning (All Mowers) (B)
1	Spring, Primary Clutching, Manual Mower (C)
2	Screw, M6x45
4	Nut, M6

Painted Parts

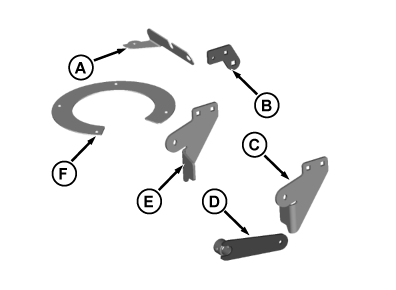

MXT014385-UN-10JUL15

Quantity	Description
2	Chute Control Bracket (A)
2	Mount, Rear (B)
1	Bracket, Mounting, Front, Left (C)
1	Lift Arm (D)
1	Bracket, Mounting, Front, Right (E)
1	Bracket, Chute Retaining (F)

Frame Parts

Quantity	Description
2	Washer, M11x34 (OD)
2	Nut, M8
2	Nut M10
2	Nut, M12
2	Carriage Bolt, M10x30
2	Locknut, M12
2	Nut, M16
2	Carriage Bolt, M12x55
2	Carriage Bolt, M12x25
2	Bolt, M8x25
2	Bolt M16x30
2	Bushing, M12x30

Lift Parts

Quantity	Description
2	Bearing, 25mm O.D.
2	Washer, M10x30 O.D.
4	Carriage Bolt, M10x25
1	Bolt, M10x55
2	Cotter Pin, Locking
2	Adjustable Lift Rod
4	Nut, Flange M10
2	Nut, M10
3	Locknut, M10
2	Adjustable Lift Link

Chute Control Parts

Quantity	Description
1	Washer, M10.5
1	Bearing, Split, 13.4 mm
1	Lockwasher, Serrated, M6
1	Washer, M6.4
4	Bushing, 8.25 mm
1	Spring Locking Pin, 2.5 mm
4	Screw, Self Tapping, M8x20
1	Carriage Bolt, M6x45
1	Screw, M6x16
1	Wingnut, M6
1	Locknut, M6
1	Clamp
2	Label, Reflector
1	Label, Chute
2	Label, Auger
1	Label, Caution/Warning
